MORE ISOLATION THROUGH INTELLIGENT UPGRADES

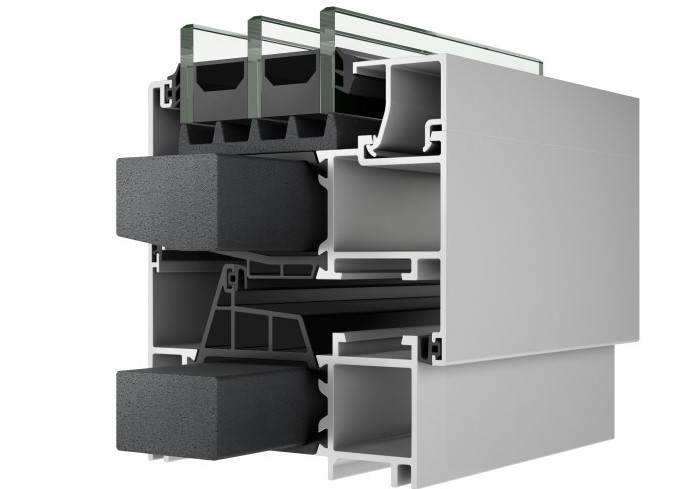

Insulating foams are the ultimate upgrade for thermal partitions. We improve the effect of composite systems and thermal partitions: through intelligent material combinations with perfectly matched insulating foams. More product optimisation: Carefully calibrated combinations ensure top U-values. Our insulating foams offer a wide selection of materials and maximum freedom in terms of design. This offers fabricators and fittings distributors a better choice in terms of insulation.



More isolation
How do you get more out of isolation? Ask us:

Contact us



HIGHLY INSULATING

Intelligent material combinations for maximum insulation performance

VERSATILE

A wide range of halogen-free, bio-based or high-temperature-resistant materials

INDIVIDUAL

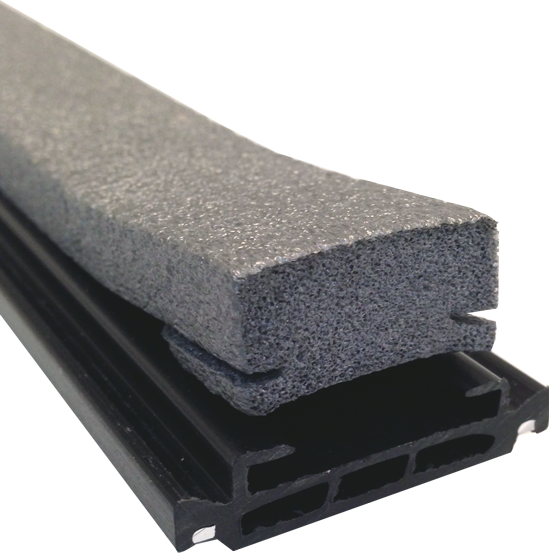

A patented cutting process for maximum flexibility in design and packaging

A VARIETY OF SHAPES

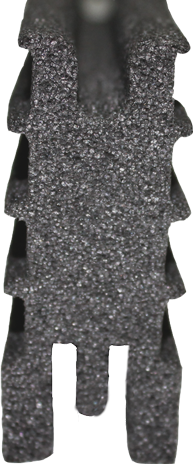

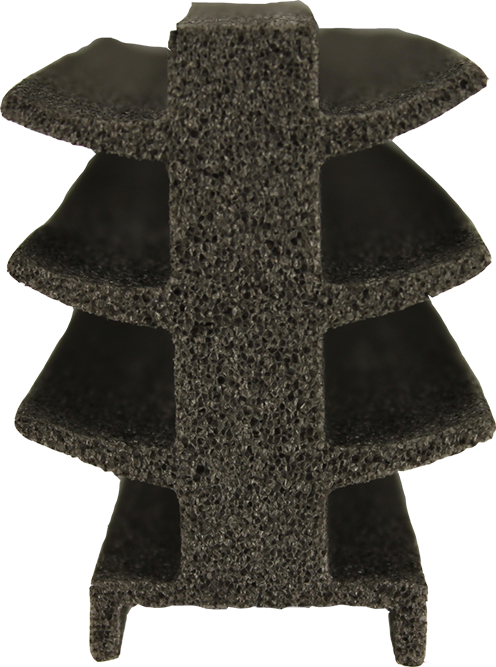

  • Our patented process permits undercuts and complex geometries

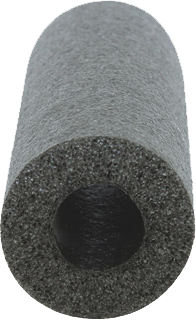

  • Solid, round or tubular material
  • Metal foil lamination to provide reflection, thus improving the heat transfer coefficient
  • Cut-outs or blanks
  • Perforation to adapt or separate the PE foams
  • Hot-melt adhesive tape as an additional fixing aid



PROPERTIES

  • λ-rated values between 0.031 and 0.038 W/(mK)
  • Density of 25 to 120 kg/m³ depending on the quality
  • Flame retardant in accordance with DIN EN 13501 Class E
  • CFC and HCFC-free
  • Recyclable
  • Exempt from labelling – not classified as dangerous goods
  • Fine, regular and closed cell structure

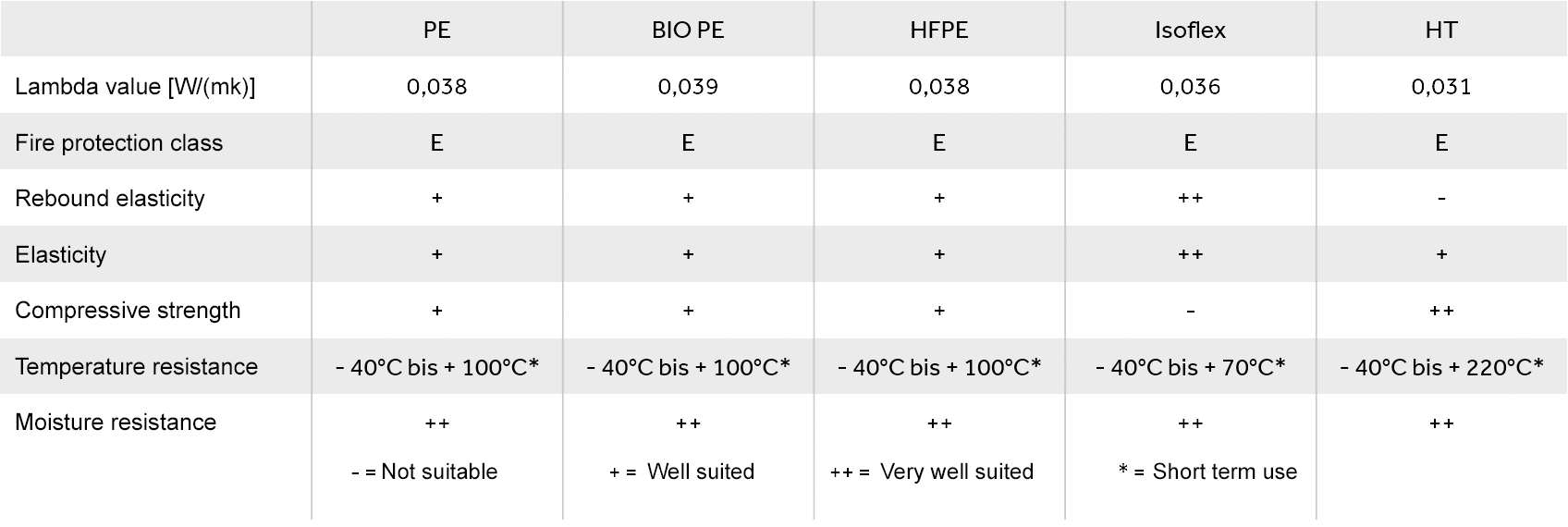

QUALITIES

PE-foam: for all common applications – a versatile product that you can rely on.

Bio-  -PE-foam: PE foam made from renewable raw materials.

Isoflex foam: extremely high resilience specifically designed for winding applications.

HFPE foam: halogen-free PE foam developed for applications and construction projects that are subject to stringent environmental requirements.

HT foam: our HT foam can be inserted into the area between the thermal partitions before the powder coating or anodising because of its high temperature and chemical resistance. Our HT foam can also be inserted into aluminium composites that have already been rolled due to its rigidity.



FORMS OF DELIVERY

  • Rolled in a cardboard box
  • Wound continuously on large coils
  • Cut to length by the metre
  • Small parts as bulk goods
  • Special designs on request











CONTACT US NOW

Do you have any questions about our products and offers in the area of insulating foams? Talk to us now without any obligation: Head of Sales Marcus Müller is looking forward to your call.
